Current-Type Relay

{0 Comments}

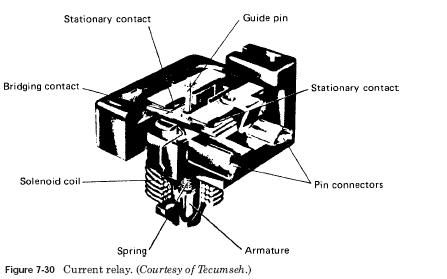

The current-type relay is most often used with small refrigeration compressors up to 1 hp. Where power is applied to the compressor motor, the relay solenoid coil attracts the relay armature upward. This causes bridging contact and stationary contact to engage (see Fig. 7-30). This energizes the motor start winding. When the compressor motor comes up to running speed, the motor’s main winding current is such that the relay solenoid coil de-energizes. This allows the relay contacts to drop open, which disconnects the motor start winding.

One thing to remember about this type of relay is its mounting. It should be mounted in a true vertical position so that the armature and bridging contact will drop free when the relay solenoid is de-energized.

current relay Current Type Relay
